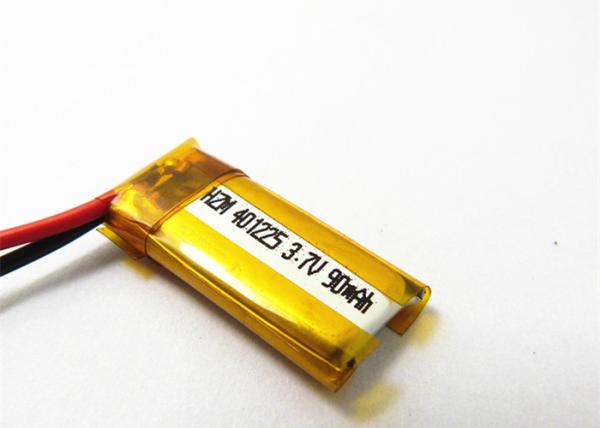

Small 3.7v 401235 90mah Lithium Polymer Battery For Blue Tooth
Earphone
| Name | Lithium Ion Polymer Battery |
| Model Number | 401225 |
| Voltage | 3.7V |
| Capacity | 90mAh |
| Dimension | 4*12*25mm |
| Inner Resistance | 350mΩ |
| Weight | 3g |
| Standard Charge Current | 0.2C/0.5C |
| Maximum charge Current | 1C |
| Open Circuit Voltage | 3.7~3.9V |
| Cut Off Voltage | 2.75v/4.2V |
| Cycle Life | 500 Times |
| Appearance | Without scratch, distortion, contamination and leakage |
| PCB | Optional |
| Wire | Optional |
| Certificate | CE, RoHS, UL, SGS |
Advantages:
1.High Energy Density.
2. High Output Voltage.
3. Excellent Security.
4. Long Cycle Life: More than 500 repeated charge/discharge cycles.
5. Fast Charge Capacity: Can be fully charged in 2 to 3 hours with
a rated voltage of 4.2 per cell
6. Environmental-friendly: No Pb, Cd added
7.Dual IC chips, that can anti-shortcircuit, anti-overcharger,
anti-overcurrent, anti-overload;
8.Injection Technology to make battery more stable;
9.With short-circuit production function, safe and reliable;
10.Factory mastered technology and competitive price;
11.CE/ROSH/SGS/UL/MSDS/UN38.3/IEC61233 standard.
Application:
1. Telecommunications: Cellular phone, interphone, blue tooth
earphone.
2. Video Devices: MP3/MP4/MP5, digital camera, portable DVD,
portable television
3. Portable Devices: GPS,PDA, E-book ,PMP, PSP, portable medical
device etc.
4. Illuminate Devices: Miner lamp, search light.
5. Others: Electric Toys, RC models
Our LiPo battery size:
| NO. | Model | Voltage | Capacity | Thickness(±0.2mm) | Width (±0.5mm) | Length (±0.5mm) |
| 1 | 102050 | 3.7V | 1000 | 1.0 | 20 | 50 |
| 2 | 103040 | 3.7V | 1200 | 1.0 | 30 | 40 |
| 3 | 103048 | 3.7V | 1500 | 1.0 | 30 | 48 |
| 4 | 103450 | 3.7V | 1800 | 1.0 | 34 | 50 |
| 5 | 105080 | 3.7V | 5000 | 1.0 | 50 | 80 |
| 6 | 243024 | 3.7V | 90 | 2.4 | 30 | 24 |
| 7 | 301030 | 3.7V | 65 | 3.0 | 10 | 30 |
| 8 | 302025 | 3.7V | 110 | 3.0 | 20 | 25 |
| 9 | 302030 | 3.7V | 120 | 3.0 | 20 | 30 |
| 10 | 302530 | 3.7V | 180 | 3.0 | 25 | 30 |
| 11 | 303030 | 3.7V | 210 | 3.0 | 30 | 30 |
| 12 | 303035 | 3.7V | 280 | 3.0 | 30 | 30 |
| 13 | 303040 | 3.7V | 300 | 3.0 | 30 | 40 |
| 14 | 303048 | 3.7V | 420 | 3.0 | 30 | 48 |
| 15 | 303450 | 3.7V | 500 | 3.0 | 34 | 50 |
| 16 | 304123 | 3.7V | 70 | 3.0 | 41 | 23 |
| 17 | 350930 | 3.7V | 70 | 3.5 | 9 | 30 |
| 18 | 371022 | 3.7V | 60 | 3.7 | 10 | 22 |
| 19 | 382530 | 3.7V | 230 | 3.8 | 25 | 30 |
| 20 | 401012 | 3.7V | 30 | 4.0 | 10 | 12 |
| 21 | 401015 | 3.7V | 40 | 4.0 | 10 | 15 |
| 22 | 401020 | 3.7V | 55 | 4.0 | 10 | 20 |
| 23 | 401025 | 3.7V | 70 | 4.0 | 10 | 25 |
| 24 | 401030 | 3.7V | 90 | 4.0 | 10 | 30 |
| 25 | 401119 | 3.7V | 55 | 4.0 | 11 | 19 |
| 26 | 492227 | 3.7V | 300 | 4.9 | 22 | 27 |
| 27 | 401225 | 3.7V | 90 | 4.0 | 12 | 25 |
| 28 | 401230 | 3.7V | 100 | 4.0 | 12 | 30 |
| 29 | 401235 | 3.7V | 120 | 4.0 | 12 | 35 |
| 30 | 401214 | 3.7V | 40 | 4.0 | 12 | 14 |
| 31 | 401425 | 3.7V | 110 | 4.0 | 14 | 25 |
| 32 | 401430 | 3.7V | 130 | 4.0 | 14 | 30 |
| 33 | 401435 | 3.7V | 160 | 4.0 | 30 | 35 |
| 34 | 401730 | 3.7V | 150 | 4.0 | 17 | 30 |
| 35 | 402020 | 3.7V | 110 | 4.0 | 20 | 20 |
| 36 | 402025 | 3.7V | 150 | 4.0 | 20 | 25 |
| 37 | 402030 | 3.7V | 150 | 4.0 | 20 | 30 |
| 38 | 402030 | 3.7V | 180 | 4.0 | 20 | 30 |
| 39 | 402035 | 3.7V | 230 | 4.0 | 20 | 35 |
| 40 | 402040 | 3.7V | 250 | 4.0 | 35 | 40 |
| 41 | 402050 | 3.7V | 380 | 4.0 | 20 | 50 |
| 42 | 402530 | 3.7V | 230 | 4.0 | 25 | 30 |
| 43 | 402535 | 3.7V | 320 | 4.0 | 25 | 35 |
| 44 | 403035 | 3.7V | 400 | 4.0 | 30 | 35 |
| 45 | 403040 | 3.7V | 420 | 4.0 | 30 | 40 |
| 46 | 403450 | 3.7V | 650 | 4.0 | 34 | 50 |
